QualysGuard Vulnerability Management

QualysGuard Vulnerability Management automates the lifecycle of network auditing and vulnerability management across the enterprise, including network discovery and mapping, asset prioritization, vulnerability assessment reporting and remediation tracking.

Use the QualysGuard Vulnerability Management Connector to import your vulnerability scan information into Cisco Vulnerability Management to assist you in reducing risk across your environment.

Platform support

Currently, Cisco Vulnerability Management supports the following Qualys PODs:

  • Qualys cloud: US1, US2, US3, US4, Qualys EU1, Qualys EU2, Qualys Canada, Qualys India, Qualys AE, Qualys UK, Qualys AU

Prerequisites

  • You must have API access.
  • You must manually log in to Qualys once to complete registration.
  • Cisco Vulnerability Management will "see" whatever the Qualys user account can access.
  • The user must be a "manager account" to pull hierarchical tag data from Qualys.

Configuring Your Qualys Connector in Cisco Vulnerability Management

1. In the Cisco Vulnerability Management UI, click Connectors.
2. Click Add Connector.
3. In the Vulnerability Management section, click Qualys VM.

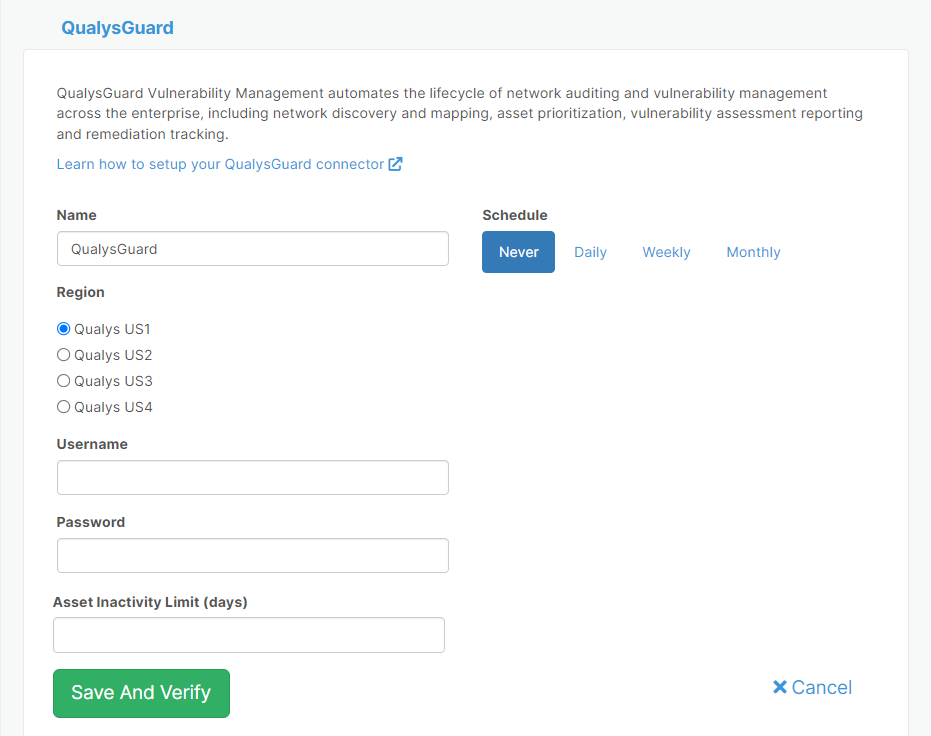

4. On the QualysGuard page, enter the following information:


  • Name: Enter a name for the connector, or leave it as QualysGuard.

  • Region: Select the Qualys POD/Region that your instance resides on.

  • Username and Password: Enter your Qualys username and password.

  • Schedule: Select the frequency that you’d like your Connector to run.

  • Asset Inactivity Limit: Enter a time in days for the connector level asset inactivity limit. Cisco recommends 2-3 times the scan cadence of your connector scans). The connector inactivity limit will take precedence over the Global limit for all items seen by the connector.

5. Click Save And Verify.

What Qualys items are synced with Cisco Vulnerability Management items?

Qualys Field

Cisco Vulnerability Management Field

Notes

Title

Name



Qualys ID

Identifier (Vulnerability)



cvss/temporal

CVSS Temporal Score



Diagnosis

Description



Solution

Solution/Fix



Severity

scanner_score

1-5

Status

Vulnerability Status

Only maps Open, Closed, & Re-opened vulnerabilities. For re-opened vulnerabilities, the status of “Re-opened is only passed on the connector run most recently after the vuln is reopened. It is listed as Open in Cisco Vulnerability Management, but provided you have “Re-opened” status tracking enabled (please see Optional Settings in the Qualys Doc) we will deposit the date of re-open in that custom field for the vulnerability which was reopened (Date in UTC)

Results

Details



vulnerability > cve (qid)

CVE



vulnerability > pci_related

PCI

(Binary Yes / No - is the vuln PCI related)

Vulnerability > Port

Ports



last_seen_time

Last Seen



last_found_datetime

Found On



last_fixed_datetime

Closed



N/A

Created

Date the vuln or asset was first imported to Cisco Vulnerability Management. Not mapped to a Qualys field. (Each asset and each vuln will have their own created dates)

os_cpe_name + os_vendor

OS



EC2_instance_id

EC2

Only if EC2 locator import is enabled on the Qualys Connector. Please see Optional Settings below.

Host > qualys asset id

external_id

The external_id maps to the Qualys Host ID by default, not the QG Host ID (agent ID). This can be swapped with a feature flag, but Host ID is the correct ID for most customers: https://success.qualys.com/discussions/s/article/000006216

DNS

hostname



IP

ip_address





MAC_address

Not available in Qualys VM API

NETBIOS

netbios



Business Unit
Asset Group
Asset Group ID
Tags
Hierarchical Tags

Tags

All of these items are converted to tags within Cisco Vulnerability Management.
Tags are served through the Hosts endpoint, but for clients where it is available we use the Tags endpoint to retrieve tag hierarchies.



Qualys items that Cisco Vulnerability Management does not import:

  • Custom Fields
  • Network IDs (not available via VM Hosts endpoint unless via a tag)

Qualys Connector API Calls

The following API calls are performed during a connector run to retrieve the Qualys information and import it into Cisco Vulnerability Management.

  • Tags: https://qualysapi.qualys.com/qps/rest/2.0/search/am/tag
  • Hosts: https://qualysapi.qualys.com:443/api/2.0/fo/asset/host/?action=list&show_tags=1&details=Basic/AGs
  • Detections: https://qualysapi.qualys.com:443/api/2.0/fo/asset/host/vm/detection/?action=list&show_tags=1&status=New,Active,Re-Opened,Fixed

Optional Settings

The following settings can be enabled for Qualys connectors. To have these settings enabled, or for more information, contact Cisco Support or your Customer Success Engineer.

Exclude Non-Running Kernels

When this option is enabled, vulnerabilities found on non-running Linux kernels will not be imported.

Exclude Non-Exploitable Vulnerabilities

When this option is enabled, vulnerabilities that are not exploitable due to configuration will not be imported.

Exclude Informationals

When you enable this option, Cisco Vulnerability Management will only import vulnerabilities that include a CVE, CWE, or WASC ID.

Exclude Potential Vulnerabilities

When this option is enabled, Cisco Vulnerability Management will not import potential vulnerabilities.

Include EC2 Metadata

When this option is enabled, Cisco Vulnerability Management will import the EC2 instance ID as a locator and display this on the asset

Use Qualys Host ID as External ID

  • When this option is enabled, Cisco Vulnerability Management will use the Qualys Host ID as the External ID.
  • The Qualys Host ID is a unique identifier created when scans are run using agent-less tracking or the Qualys Cloud Agent.
  • Users must enable agent-less tracking on their Qualys subscription.

Skip Tags

This setting enables you to not create any Tags in Cisco Vulnerability Management based on the scanner metadata.

Tag Reset

This setting assists you with keeping your scanner metadata synchronized with Cisco Vulnerability Management. Each time the connector is run, all tags in Cisco Vulnerability Management will be removed and the scanner tag metadata re-created.

If you have created any manual tags or any tags were created from metadata from other connectors, that tag information will be removed and will be refreshed once those other connectors are rerun.

Active Asset Tags

When this option is enabled, tags used in Tag Reset only come from assets that have not passed the configured asset expiration period. This ensures that old Qualys records are not impacting Cisco Vulnerability Management data.

Pass the date a "Re-opened" status is assigned to a vuln into a custom field in Cisco Vulnerability Management

This requires that a custom field be created in Cisco Vulnerability Management, that we can write the <date> that any specific vulnerability is re-opened in Qualys. This allows tracking for "re-opened" vulns via custom field, given Cisco Vulnerability Management does not support a "Reopened" status.
